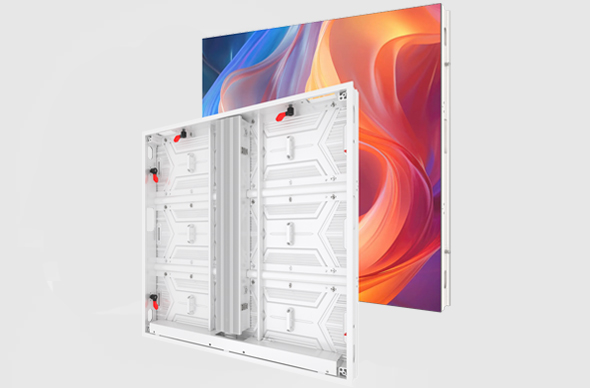

Magnesium-aluminum die-casting cabinet,
93% magnesium, full cabinet weight 25kg.
Whole screen thickness 125mm (cabinet 110mm + module 15mm),
save 40% valume, much less shipping cost.
Using with energy saving IC, avg power consumption only 150W/sqm. 4pcs quick locks per cabinet, push and pull the locks, easy and fast installation.
The cabinet is finished by one time die-casting forming with CNC high-precision cut,
cabinet diagonal and surface flatness is perfect.
4mm / 5mm / 5.93mm / 6.67mm / 8mm / 10mm
Ideal for outdoor advertisement media, government & enterprise project culture &
tourism, sports, propaganda image, commercial real estate.
All outdoor 320X160mm size led module P4 / P5 / P5.93 / P6.67 / P8 / P10
and front & back service 320X320mm led module P6.67 / P8 / P10.
| Pixel Pitch(mm) | P4 | P5 | P5.93 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|---|
| Cabinet Size | 960*960*125mm | 960*960*125mm | 960*960*125mm | 960*960*125mm | 960*960*125mm | 960*960*125mm |
| Cabinet Pixels | 240*240 | 192*192 | 162*162 | 144*144 | 120*120 | 96*96 |
| Cabinet Weight | 25kg | 25kg | 25kg | 25kg | 25kg | 25kg |
| Brightness(cd/m2) | 4000 | 6000 | 5500 | 5500 | 5000 | 6500 |
| Gray Scale | 14BT | 14BT | 14BT | 14BT | 14BT | 14BT |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Protection Level | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Max/Avg Power | 900/300 | 850/300 | 800/300 | 800/300 | 800/300 | 850/300 |
